Dimensions (mm) length * width * height
1140010630 * 2500 * 3980
Carriage inner dimensions (mm) length * width * height
- * - * -
Axis number
Three
The wheelbase (mm)
6500 1310 1310
Number of spring steel
-/10/10/10, -/8/8/8
Tire specifications
11.00R20 12PR, 12R22.5 12PR
Tire number
Twelve
Tread front / rear (mm)
- / 1840/1840/1840
The total mass (kg)
Forty thousand
Rated load (kg)
Three billion ten million thirty thousand and nine hundred
The quality of service (kg)
Ninety-nine million nine thousand and one hundred
Semi-trailer maximum allowable bearing quality (kg)
Sixteen thousand
Approach / departure angle (DEG)
-/30
Front / rear suspension (mm)
-/950
The axle load (kg):
-/24000 (and three axis)
The vehicle identification code (VIN):
LMC940F3 x x x x x x x x x
other

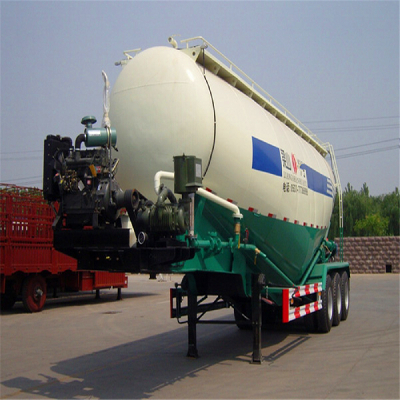

The effective volume of the tank 45 cubic meters, special transport density of 700 kg / cubic meters of fly ash tank dimensions: long 10420mm, maximum diameter of 2500mm, high 3120mm, optional without air compressor unit corresponding to the shape and the size of the long 10630mm, corresponding to the kerb mass 9100kg, corresponding to the load mass 30900kg, upper or posterior optional water tank; ABS system manufacturers Guangzhou comet vehicle brake technology development Co., Ltd., types for CM2XL-4S2J7P; door device materials for Q235 steel plate, connection mode for welding, section dimensions of the rear guard for 160mm * 80mm * 4mm, ground height 550mm; diameters on both ends of the tank body 1920mm, tank the widest part of height for 3120mm.
