Dimensions (mm) length * width * height
12450 * 2480 * 1750
Carriage inner dimensions (mm) length * width * height
- * - * -
Axis number
Three
The wheelbase (mm)
7160 1310 1310
Number of spring steel
-/10/10/10, -/8/8/8
Tire specifications
11.00R20 12PR, 12R22.5 12PR
Tire number
Twelve
Tread front / rear (mm)
- / 1840/1840/1840
The total mass (kg)
Forty thousand
Rated load (kg)
Thirty-four thousand and five hundred
The quality of service (kg)
Five thousand and five hundred
Semi-trailer maximum allowable bearing quality (kg)
Sixteen thousand
Approach / departure angle (DEG)
-/18
Front / rear suspension (mm)
-/1670
The axle load (kg):
-/24000 (and three axis)
The vehicle identification code (VIN):
LMC940J3 x x x x x x x x x
other

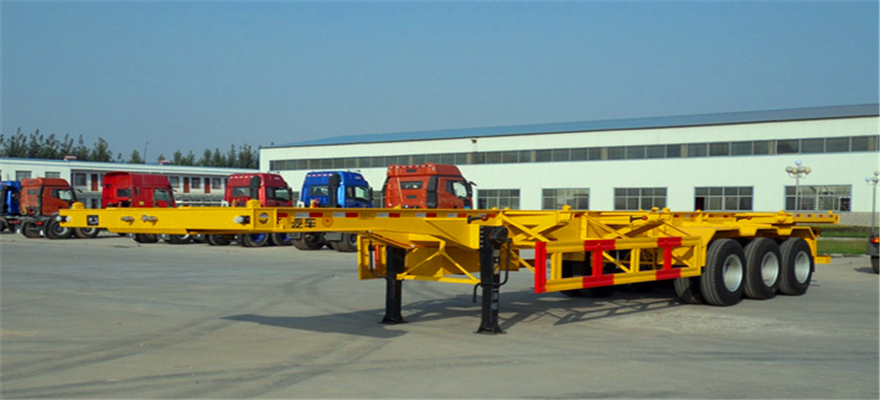

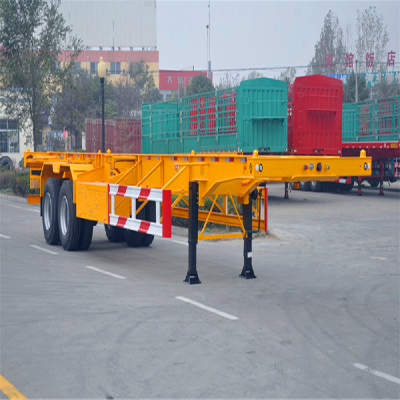

The car used to transport 40 foot container, goose neck structure is adopted, traction pin frame with a total height of 210mm, iron body optional fender, ABS system manufacturer for Guangzhou comet vehicle brake technology development Co., Ltd., model CM2XL-4S2J7P; door device materials for Q235 steel plate, connection mode for welding, section dimensions of the rear guard of 160mm * 80mm, ground height to 550mm.
